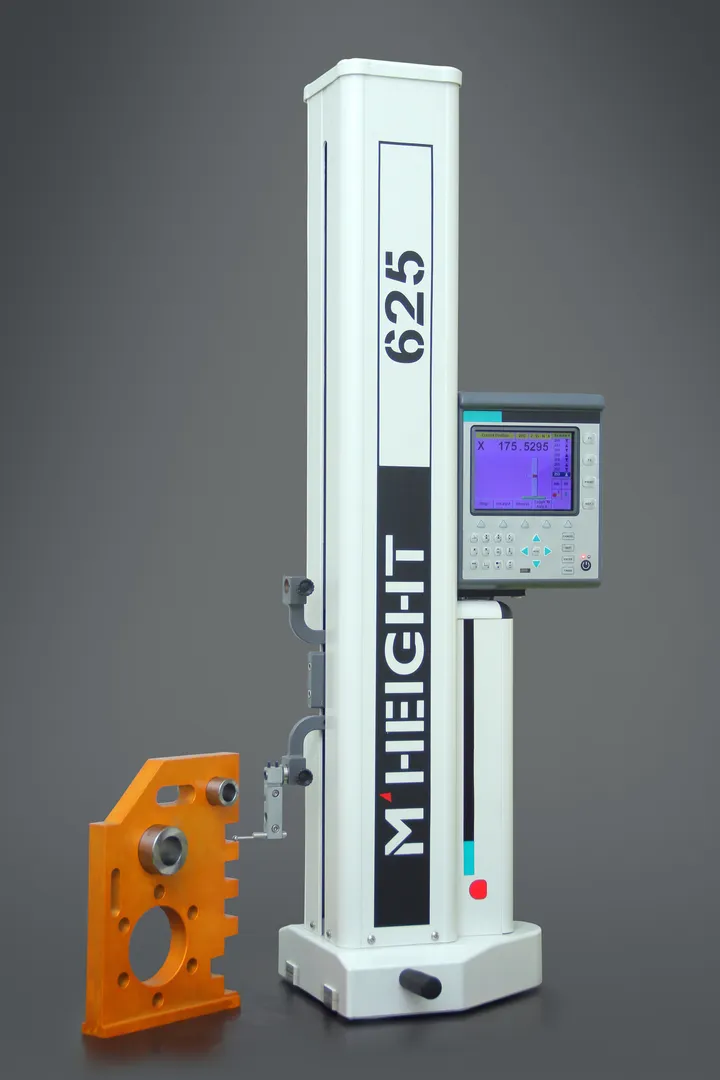

2D Height Gauge
We are 2D Height Gauge Supplier In Gujarat, This 2D height gauge is manufactured in india and it is coming with three type of ranges 325, 625, 1000mm and its extendable.
BASIC FUNCTIONS
* Automatic contacting of plane from above.
* Automatic contacting of plane from below.
* Automatic contacting of bore in up and down
direction.
* Automatic contacting of shaft in down and up
condition.
* Direct measurement of bore diameter and
bore centre.
* Direct measurement of bore centre using
conical stylus.
* Computing distance between 2 measured
values.
* Computing symmetry between 2 measured
values.
* Repeating a particular sequence.
* Automatic calculation between last two
measured data.
* Measurement of run-out.
* Measurement of groove, width and centre.
* Measurement with two references
* Measurement of minimum and maximum
value relative to a surface
* Measurement of depths.
2D MEASUREMENT FUNCTION
* Distance and angle between two bores.
* Angle between 3 bores.
* Centre point and diameter of PCD circle.
* Skew function to arithmetically align the test
piece.
* Squareness measurement with
perpendicularity error < 8 microns
* Switch to measurement in the second axis.
* To assess co-ordinate in X and Y axis
simultaneously.
* Measurement in Cartesian and polar
coordinates
* Aligning a component using translation and
rotation of XY Co-ordinate System
Automatically.
Send your inquiry for more details.
