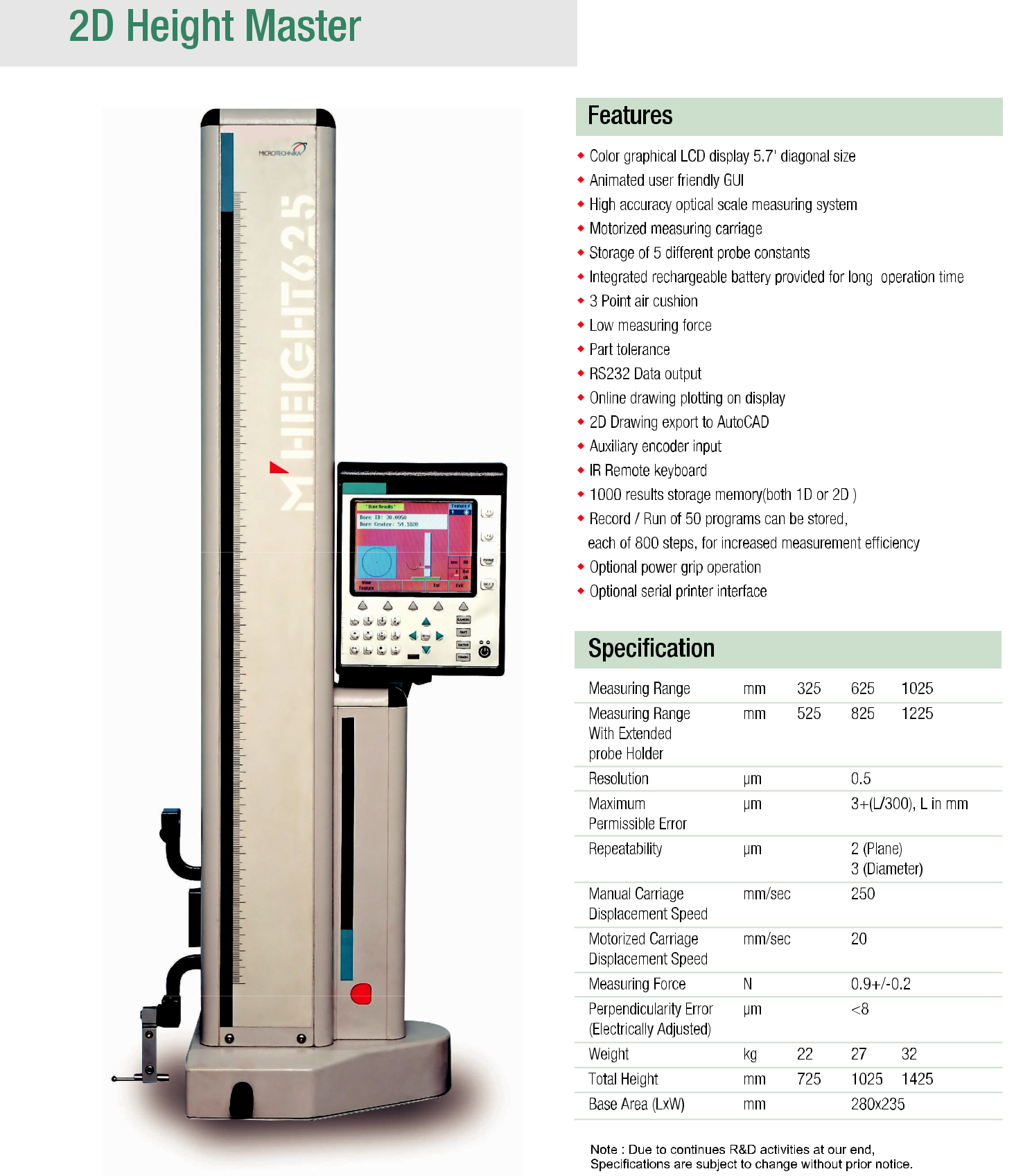

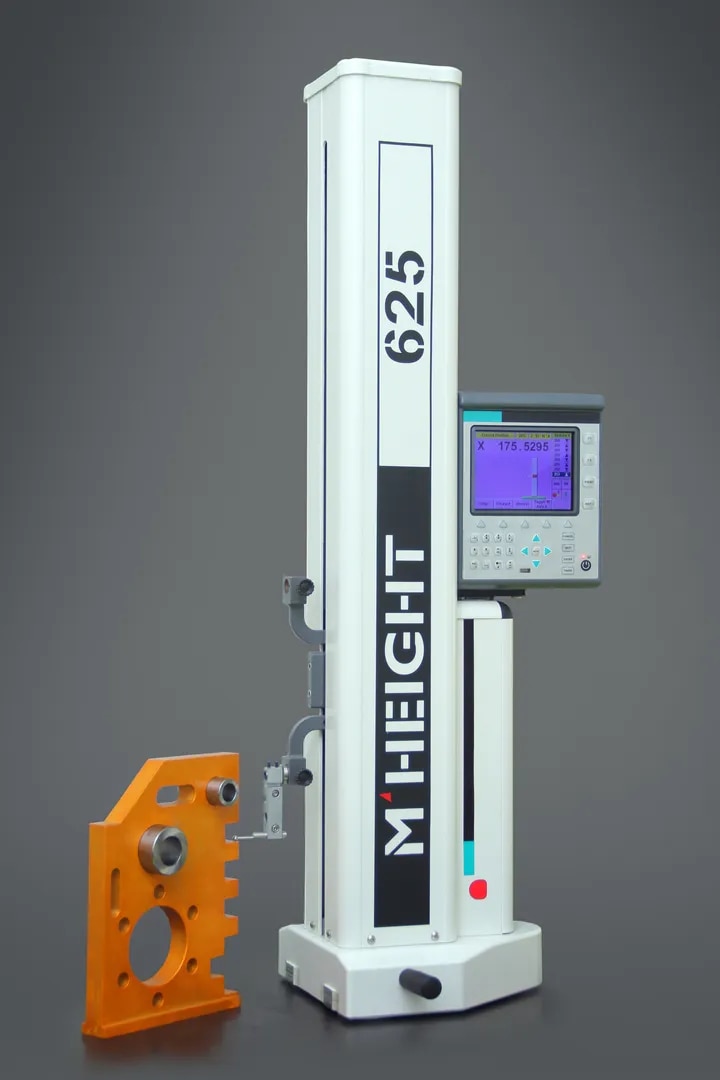

2D Height Gauge

We Are Dealing in 2D height gauge in ahmedabad and we can supply to all over the gujarat. Its of innovative make a pune based manufacturing company. This 2D height gauge is manufactured in India and Its our pride to deal with such type of products. Specifications are as below.

HM 625(measuring range 625mm)

HM 625(measuring range 625mm)

extended measuring range 825mm, resolution

0.0005mm.

With Standard accessories

Hardened Steel tip probe dia 6mm

Carrier for probe

Setting master gauge block

Carrier for digital indicator

SPECIFICATIONS

Measuring Range :625 mm

Expandable Range :825 mm

Resolution :0.0005 mm (Numeric Jena

Scale, Germany)

Repeatability :

On planes : 0.002 mm

On bores : 0.003 mm

Accuracy : 2.5+(L/275),L in mm

Squareness : 0.006 mm

(compensated frontal)

Weight : 27 Kg approximately

Memory : 1000 steps

Probing Force : 0.9 + 0.2 Newton’s

BASIC FUNCTIONS

* Automatic contacting of plane from above.

* Automatic contacting of plane from below.

* Automatic contacting of bore in up and down

direction.

* Automatic contacting of shaft in down and up

condition.

* Direct measurement of bore diameter and

bore centre.

* Direct measurement of bore centre using

conical stylus.

* Computing distance between 2 measured

values.

* Computing symmetry between 2 measured

values.

* Repeating a particular sequence.

* Automatic calculation between last two

measured data.

* Measurement of run-out.

* Measurement of groove, width and centre.

* Measurement with two references

* Measurement of minimum and maximum

value relative to a surface

* Measurement of depths.

2D MEASUREMENT FUNCTION

* Distance and angle between two bores.

* Angle between 3 bores.

* Centre point and diameter of PCD circle.

* Skew function to arithmetically align the test

piece.

* Squareness measurement with

perpendicularity error < 8 microns

* Switch to measurement in the second axis.

* To assess co-ordinate in X and Y axis

simultaneously.

* Measurement in Cartesian and polar

coordinates

* Aligning a component using translation and

rotation of XY Co-ordinate System

Automatically.
