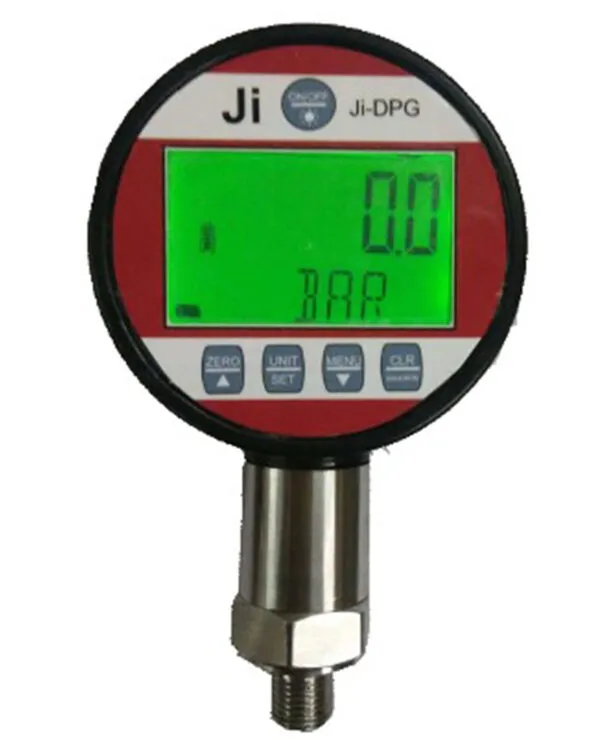

Digital Pressure Gauge

A digital pressure gauge displays the acting pressure in an integrated digital display. Ji offers digital pressure gauges for general industrial applications and also for use in the field of testing and calibration. The indication cases of our digital pressure gauges are rotatable if required and thus always ensure a good readability.

Features:

large digital display (15X6mm), Upper display pressure value, Lower display pressure unit.

 Accuracy 0.25% Full Scale

 Range from vacuum to 700 bar

 Can display maximum & minimum value

 Different pressure units options available (12 units available)

 Different thread sizes available

 Easy to use keypad & menu options

Technical Details:

 Store Temperature: -30 to 85 Deg C

 Temperature shift: 0.05%F.S per Degree

 Size: 78 mm Dia

 Engineering units: ( As Required )

 Thread Size: ¼” BSP (M)
