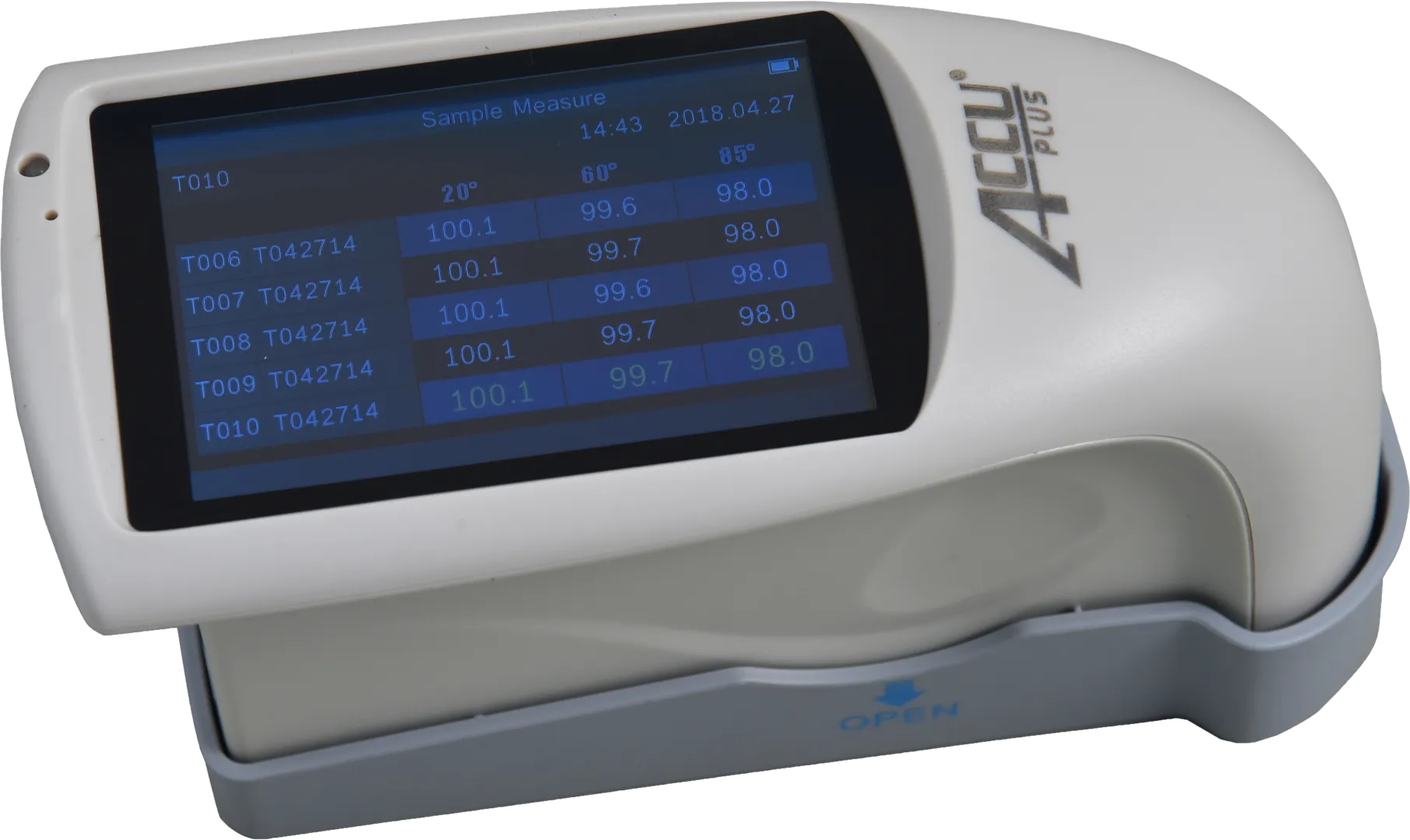

Gloss Meter 111

Model GLOSS-111, Measure Angle 60°, Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

Measurement Range 0~300GU

Division Value 0.1GU

Measurement Range 0-10GU 10-100GU 100-300GU

Repeatability ± 0.1GU ± 0.2GU ± 0.2%GU

Reproducibility ± 0.2GU ± 0.5GU ± 0.5%GU

Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source

Measuring Time 0.5s

Dimension L*W*H : 160mm*75mm*90mm

Weight 350g

Battery 3200mAh Li-ion Battery, >10000 times(within 8 hours)

Viewing Screen TFT 3.5 inch, capacitive touch screen

Interface USB/RS-232

Software GQC6 Quality Control Software with QC report printing functions and more extended functions.

Operation Temperature 0~40℃（32~104°F）

Storage Temperature -20~50℃（-4~122°F）

Humidity <85% relative humidity, no condensation

Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate

Optional Accessories Miniature Printer

Note The specifications are subject to change without notice.
