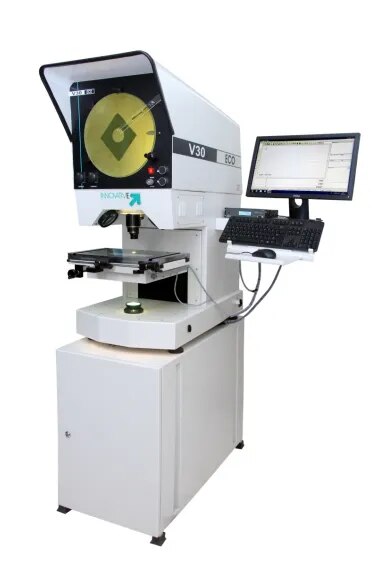

Profile Projector

Vertical Light path projector

Screen Diameter : 300 mm

Co-Ordinate Table:

Work Stage : - 250 x 150mm

Travel : X - 150mm, Y- 100mm

Focusing : 100mm motorised

Scale Resolution : 0.005mm.

Contour Light : 24Volts x 150Watts

Surface Lights:12V X 50 Watts

Twin or 12V x 100Watts Twin.

Filter : Amber Colour Filter for

Contour Light. Contour and

Surface Lights with Fan cooler.

Other Standard Features :

Screen Locking.

Fine Rotation of Screen Glass

Digital angular protractor of 0.01degree

Fabricated Steel Base
